How to enforce Https in Web Api server applications

See this post for creating simple Web Api application

https://www.technical-recipes.com/2018/getting-started-with-creating-asp-net-web-api-services/

Step 1: Create new Web API project

Step 2: Modify the Values controller

Comment out [Authorize] requirement and add the [RequireHttps] requirement in ValuesController.cs
ValuesController.cs.

ValuesController.cs

using System.Collections.Generic;
using System.Web.Http;

namespace WebAppHttps.Controllers
{
    [RequireHttps]
    public class ValuesController : ApiController
    {
        // GET api/values
        public IEnumerable<string> Get()
        {
            return new string[] { "value1", "value2" };
        }

        // GET api/values/5
        public string Get(int id)
        {
            return "value";
        }

        // POST api/values
        public void Post([FromBody]string value)
        {
        }

        // PUT api/values/5
        public void Put(int id, [FromBody]string value)
        {
        }

        // DELETE api/values/5
        public void Delete(int id)
        {
        }
    }
}

Step 3: Create a new filter

Create new Filter Folder:

Add new class RequireHttpsAttribute

RequireHttpsAttribute.cs

using System;
using System.Net;
using System.Net.Http;
using System.Text;
using System.Web.Http.Controllers;
using System.Web.Http.Filters;

namespace WebAppHttps.Filters
{
   public class RequireHttpsAttribute : AuthorizationFilterAttribute
   {
      public override void OnAuthorization(HttpActionContext actionContext)
      {
         var req = actionContext.Request;

         if (req.RequestUri.Scheme == Uri.UriSchemeHttps) return;

         var html = "<p>Https required.</p>";

         if (req.Method.Method == "GET")
         {
            actionContext.Response = req.CreateResponse(HttpStatusCode.Found);
            actionContext.Response.Content = new StringContent(html, Encoding.UTF8, "text/html");

            var uriBuilder = new UriBuilder(req.RequestUri)
            {
               Scheme = Uri.UriSchemeHttps,
               Port = 443
            };

            actionContext.Response.Headers.Location = uriBuilder.Uri;
         }
         else
         {
            actionContext.Response = req.CreateResponse(HttpStatusCode.NotFound);
            actionContext.Response.Content = new StringContent(html, Encoding.UTF8, "text/html");
         }
      }
   }
}

Step 4: Update WebApiConfig

WebApiConfig.cs

using System.Web.Http;
using WebAppHttps.Filters;

namespace WebAppHttps
{
   public static class WebApiConfig
   {
      public static void Register(HttpConfiguration config)
      {
         // Web API configuration and services
         // Web API routes
         config.MapHttpAttributeRoutes();

         config.Routes.MapHttpRoute(
            "DefaultApi",
            "api/{controller}/{id}",
            new {id = RouteParameter.Optional}
         );

         config.Filters.Add(new RequireHttpsAttribute());
      }
   }
}

Step 5: Try the application

Open the Browser and observe that this particular api cannot be reached:

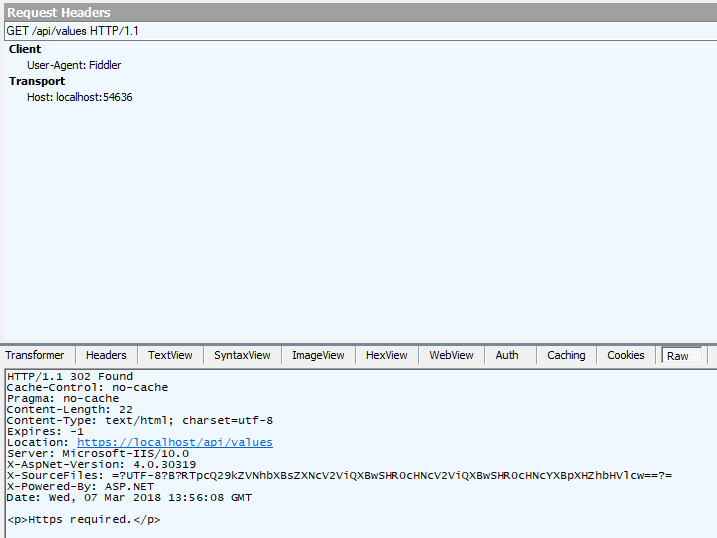

To see why, open the Fiddler application and inspect the 302 error that the request returns, by double-clicking on it:

Navigate to the ‘Raw’ tab to view the request information:

So that we no see that it has created a new Url for us, but with ‘https’ added instead of ‘http’. It took that new Url and attempted to find it, which it did not, as expected. And also that additional html markup text has been appended to the response.

When we request it changed the uri to the https, because it got the Found header plus the location so it already knew where it was supposed to be located at.
